Estate Swing E-SC 1600 Column Mounting Single Swing Gate Opener

The Estate Swing E-SC 1600 Column Mounting Single Swing Opener is easy to install and meets the highest standards in safety. Every unit comes with everything needed for installation, including mounting brackets (hardware to affix brackets to the gate and column not included). In addition to Estate Swing's attention to practicality, the manufacturer adheres to the highest safest standards. To begin with, the manufacturer meets or exceeds ISO 9000 regulations, which require testing on 100% of all products being produced in a single factory, and all the parts of Estate Swing systems are made in one factory. Likewise, the Estate Swing E-SC 1600 is certified for and exceeds UL 325 standards for anti-crushing safety. The diligent observation of safety standards assures that this model not only meets safety requirements but also offers a high-quality product.

The Estate Swing E-SC 1600 also offers ease of operation. The low voltage system eliminates the need to run 110 AC to the gate; a low voltage wire that plugs into a household outlet within 144' of the operator is sufficient. Unique to this model, however, is its capability to function as a constant duty opener. Other models run on a trickle-charged system, in which the system runs off the battery, which is being charged as it is used; that, of course, runs the risk of draining the stored power before it is charged. In the E-SC 1600, however, the power comes directly from the transformer - the batteries are strictly for backup - so there is no concern about the batteries running out of power before they are charged. Also convenient is the user-driven updateable manual for continuous improvement of installation ease, maintenance, and troubleshooting updates.

The Estate Swing E-SC 1600 Column Mounting Single Swing Opener is a specialized unit designed as an alternative to other systems for homeowners with columns. This model is designed for a residential setting of up to 4 homes.

• Gate Length and Weight - Up to 16' in length and 800 lbs
• Gate Materials - Wood, Steel, Aluminum, Chain Link, and more
• Gate Post or Column Size (pull to open design) - Maximum 24"x24" column with the gate mounted in the center (halfway between the front face and back face of the column)
• Power - Low voltage transformer (included) and backup batteries (optional; not included)
• Solar Compatible - No; must be within 144' of outlet

• One Touch EZ-Programming - The control board learns the open and closing limits automatically, so there is no need for time-consuming guesstimates and manual adjustments.
• Soft Start/Soft Stop - This feature eases the wear and tear on the gate. During a normal cycle, the opener automatically slows the motion of the gate near the stop points so the gate closes smoothly and with minimal impact.
• Control Board, Easy Read Diagnostics - FAAC has included a LED light diagnostic on the control board for easy diagnostics of problems or missing connections. This allows efficient repair and swift continuation of normal gate operation.
• Adjustable Performance Features - Adjust such features as Pause times, Opening/Closing Delays, Static Force, and much more. This means the unit's functions are customizable to the customer's lifestyle.
• Preset Gate Function Logic - Preset multiple features at once so that they can be changed later at the touch of a single button.
• Quick Plug Radio Receiver - The remote receiver is easy to use and the design means there are no wires to run; just set the dip switch combination and plug it into the board.
• Extended Setback - The articulating arm allows for a further setback than standard linear arms, making it perfect for column mounting. Other gate openers require a setback for the rear pivot point, making them difficult to mount on columns.
• 24 Volt Output Terminals - For convenient addition of accessories requiring power like locks, sensors, and more.
• 120 Degree Opening Capability - The large opening arch capability of 120 degrees is far beyond most other openers. Optional limit switches for point-positive stopping are also available. The limit switches mounted on the column are depressed when the cam on the drive shaft meets the limit shifts. This provides a consistent open and closing of the gate.
• Quick, Safe, and Secure Manual Release - Every unit comes with a manual release key that can be used should the power fail and the backup battery is not charged. This ensures that the gate can be opened without damaging or disconnecting any components.
• Highest Level of Safety - In addition to meeting or exceeding many safety standards, this model's safety devices function on a normally closed circuit. This means that if a safety device does not activate for any reason, the opener will not operate, keeping loved ones and assets safe. Most other openers function on a normally open circuit, which means the consumer does not know the safety device is not working properly until it is too late.
• Advanced Gear System - The advanced gear system is essential to the durability and power of the gate opener. The design of this motor enhances reliability and control, and cuts down on overall wear and tear on the motor.
• All Weather Compatible - The arm is able to withstand the extremes of weather and outdoor use.

The tools and supplies listed below recommended in the manufacturers manual. DiY Gate Openers does not provide these tools and supplies, but they can be purchased or rented at local hardware stores.

• Power Drill and appropriately sized bits
• Crescent Wrench
• Flat Head Screwdriver
• Nuts, Bolts, Anchors and Washers
• C-Ring Pliers
• Phillips Head Screwdriver
• Tape Measure
• Level
• Wire Strippers
• C-Clamps
• Carpenters Clamps

The type of gate, power supply, and contributing environmental factors determines whether or not additional supplies are needed. For further details, consult the product manual that comes with this gate opener model.

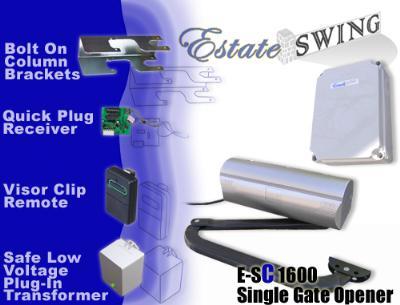

• Control Box
• Operator Arm with power cable
• Control Board
• Manual Release Key
• Low Voltage Transformer
• 433Mhz Receiver
• 433Mhz Transmitter
• Adjustable, bolt on mounting brackets
• Mounting Hardware
• Instruction Manual, Public Warning Sign, Quick Check color wiring diagram and setback cutout
