Solar Information


usa map

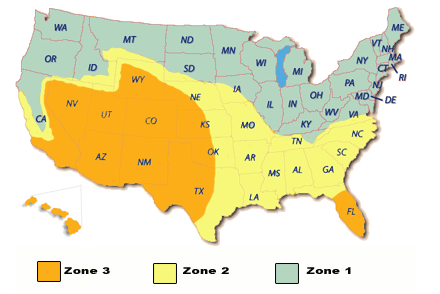

The colors on this map designate solar zones during the periods of the year when the least amount of sun light is available. The recommended cycles do not factor the power draw of accessories. Cycles are considered one full opening and closing movement of a maximum size/weight gate for the corresponding opener. Cycles are also figured to be proportionally distributed over a 12 to 14 hour period; not consecutive.


SWING GATE OPENERS

Opener Watts Panel Estimated Cycles Per Day
Zone 3 Zone 2 Zone 1
Mighty Mule FM350/ GTO PRO SW1500  5W 13 8 4
10W 26 16 8
15W(5W & 10W in parellel) 30 20 11
20W 38 28 14
25W(20W & 5W in Parallel) 46 36 17
30W 54 44 20
    Zone 3 Zone 2 Zone 1
5W 13 8 4
10W 26 16 8
15W(5W & 10W in parellel) 30 20 11
20W 38 28 14
25W(20W & 5W in Parallel) 46 36 17
30W 54 44 20
    Zone 3 Zone 2 Zone 1
5W N/A N/A N/A
10W 13 8 4
15W(5W & 10W in parellel) 20 13 7
20W 27 18 10
25W(20W & 5W in Parallel) 34 23 13
30W 41 28 16
    Zone 3 Zone 2 Zone 1
5W 13 8 4
10W 26 16 8
15W(5W & 10W in parellel) 30 20 11
20W 38 28 14
25W(20W & 5W in Parallel) 46 36 17
30W 54 44 20
    Zone 3 Zone 2 Zone 1
5W NA NA NA
10W 26 16 8
15W(5W & 10W in parellel) 30 20 11
20W 38 28 14
25W(20W & 5W in Parallel) 46 36 17
30W 54 44 20
    Zone 3 Zone 2 Zone 1
5W N/A N/A N/A
10W 13 8 4
15W(5W & 10W in parellel) 20 13 7
20W 27 18 10
25W(20W & 5W in Parallel) 34 23 13
30W 41 28 16
    Zone 3 Zone 2 Zone 1
5W
N/A
N/A
N/A
10W
N/A
N/A
N/A
15W(5W & 10W in parellel) 10 6 3
20W 13 8 4
25W(20W & 5W in Parallel) 16 10 5
30W 19 12 6
    Zone 3 Zone 2 Zone 1
5W
14
12
10
10W
26
23
20
20W 48 44 40
30W 70 65 60
40W (30W & 10W in Parellel) 92 86 80
    Zone 3 Zone 2 Zone 1
5W
N/A
N/A
N/A
10W
14
12
10
20W
26
23
20
30W 39 34 30
40W (30W & 10W in Parellel) 48 44 40
    Zone 3 Zone 2 Zone 1
5W
14
12
10
10W
26
23
20
20W 48 44 40
30W 70 65 60
40W (30W & 10W in Parellel) 92 86 80
    Zone 3 Zone 2 Zone 1
5W
N/A
N/A
N/A
10W
14
12
10
20W
26
23
20
30W 39 34 30
40W (30W & 10W in Parellel) 48 44 40
    Zone 3 Zone 2 Zone 1
Zareba G450 *w/ 2 batteries
5W
22
4
N/A
10W
58
32
8
20W
92
66
40
    Zone 3 Zone 2 Zone 1
Zareba G452 *w/ 2 batteries
5W
10
2
N/A
10W
28
18
6
20W
68
42
26
    Zone 3 Zone 2 Zone 1
Zareba G750 *w/ 2 batteries
5W
22
4
N/A
10W
58
32
8
20W
92
66
40
    Zone 3 Zone 2 Zone 1
Zareba G752 *w/ 2 batteries
5W
10
2
N/A
10W
28
18
6
20W
68
42
26




Zone 3 Zone 2 Zone 1
Estate Swing E-S 11000  5W 13 8 4
10W 26 16 8
15W(5W & 10W in parellel) 30 20 11
20W 38 28 14
25W(20W & 5W in Parallel) 46 36 17
30W 48 44 20




Zone 3 Zone 2 Zone 1
Estate Swing E-S 1102 5W
N/A
N/A
N/A
10W 13 8 4
15W(5W & 10W in parellel) 20 13 7
20W 27 18 10
25W(20W & 5W in Parallel) 34 23 13
30W 41 28 16




Zone 3 Zone 2 Zone 1
Estate Swing E-SC 1102 5W
N/A
N/A
N/A
10W 13 8 4
15W(5W & 10W in parellel) 20 13 7
20W 27 18 10
25W(20W & 5W in Parallel) 34 23 13
30W 41 28 16

Slide Gate Operators

Opener Watts Panel Estimated Cycles Per Day




Zone 3 Zone 2 Zone 1
GTO PRO SL1000  5W
N/A
N/A
N/A
10W 13 8 4
15W(5W & 10W in parellel) 20 12 6
20W 26 16 8




Zone 3 Zone 2 Zone 1
GTO PRO SL1002  5W
N/A
N/A
N/A
10W
N/A
N/A
N/A
15W(5W & 10W in parellel) 10 6 3
20W 13 8 4




Zone 3 Zone 2 Zone 1
GTO PRO SL2002 *Requires 24 A/Hr Battery & Housing  5W
N/A
N/A
N/A
10W 13 8 4
15W(5W & 10W in parellel) 20 12 6
20W 26 16 8
    Zone 3 Zone 2 Zone 1
5W
14
12
10
10W
26
23
20
20W 48 44 40
30W 70 65 60
40W (30W & 10W in Parellel) 92 86 80
